软件版本
我自己使用的是WINCC 7.5 SP2，亲测有效，其他版本大家也可试试。
问题描述

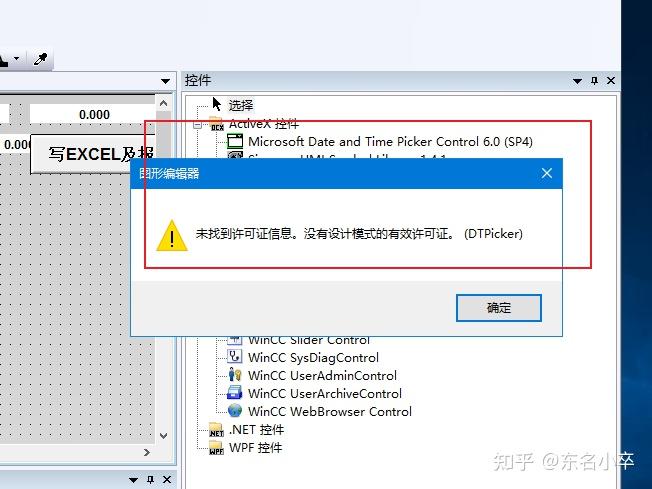

在WinCC 画面绘制过程中，使用Microsoft Date and Time Picker Control 6.0(SP4)控件时提示,未找到许可证。没有设计模式的有效许可证。如下图所示。
解决办法
1.首先取消激活并关闭WINCC软件。
2.将文末代码复制到记事本中，并另存为VBCTRLS.reg文件，如下图所示
3.双击VBCTRLS文件，弹出下图所示对话框，点击“是”。
4.弹出如下图所示对话框，完成注册表写入。再次打开WINCC，即可正常添加控件了。
REGEDIT HKEY_CLASSES_ROOT\Licenses = Licensing: Copying the keys may be a violation of established copyrights. // Masked Edit Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\BC96F860-9928-11cf-8AFA-00AA00C00905 = mmimfflflmqmlfffrlnmofhfkgrlmmfmqkqj [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\BC96F860-9928-11cf-8AFA-00AA00C00905] @="mmimfflflmqmlfffrlnmofhfkgrlmmfmqkqj" // Chart Control 6.0 (OLEDB) license key HKEY_CLASSES_ROOT\Licenses\12B142A4-BD51-11d1-8C08-0000F8754DA1 = aadhgafabafajhchnbchehfambfbbachmfmb [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\12B142A4-BD51-11d1-8C08-0000F8754DA1] @="aadhgafabafajhchnbchehfambfbbachmfmb" // Common Dialog Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\4D553650-6ABE-11cf-8ADB-00AA00C00905 = gfjmrfkfifkmkfffrlmmgmhmnlulkmfmqkqj [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\4D553650-6ABE-11cf-8ADB-00AA00C00905] @="gfjmrfkfifkmkfffrlmmgmhmnlulkmfmqkqj" // ADO Data Control 6.0 (OLEDB) license key HKEY_CLASSES_ROOT\Licenses\C4145310-469C-11d1-B182-00A0C922E820 = konhqhioohihphkouimonhqhvnwiqhhhnjti [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\C4145310-469C-11d1-B182-00A0C922E820] @="konhqhioohihphkouimonhqhvnwiqhhhnjti" // Common Controls-3 6.0 license key HKEY_CLASSES_ROOT\Licenses\38911DA0-E448-11D0-84A3-00DD01104159 = mcpckchcdchjcjcclidcgcgchdqdcjhcojpd [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\38911DA0-E448-11D0-84A3-00DD01104159] @="mcpckchcdchjcjcclidcgcgchdqdcjhcojpd" // Windows Common Controls-2 5.0 (SP2) license key HKEY_CLASSES_ROOT\Licenses\9E799BF1-8817-11cf-958F-0020AFC28C3B = uqpqnqkjujkjjjjqwktjrjkjtkupsjnjtoun [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\9E799BF1-8817-11cf-958F-0020AFC28C3B] @="uqpqnqkjujkjjjjqwktjrjkjtkupsjnjtoun" // Windows Common Controls license key HKEY_CLASSES_ROOT\Licenses\57CBF9E0-6AA7-11cf-8ADB-00AA00C00905 = aahakhchghkhfhaamghhbhbhkbpgfhahlfle [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\57CBF9E0-6AA7-11cf-8ADB-00AA00C00905] @="aahakhchghkhfhaamghhbhbhkbpgfhahlfle" // Data Bound Grid Control 5.0(SP3) license key HKEY_CLASSES_ROOT\Licenses\556C75F1-EFBC-11CF-B9F3-00A0247033C4 = xybiedobrqsprbijaegcbislrsiucfjdhisl [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\556C75F1-EFBC-11CF-B9F3-00A0247033C4] @="xybiedobrqsprbijaegcbislrsiucfjdhisl" // Data Bound List Controls 6.0 license key HKEY_CLASSES_ROOT\Licenses\096EFC40-6ABF-11cf-850C-08002B30345D = knsgigmnmngnmnigthmgpninrmumhgkgrlrk [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\096EFC40-6ABF-11cf-850C-08002B30345D] @="knsgigmnmngnmnigthmgpninrmumhgkgrlrk" // Internet Transfer Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\7C35CA30-D112-11cf-8E72-00A0C90F26F8 = yjrjvqkjlqqjnqkjvprqsjnjvkuknjpjtoun [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\78E1BDD1-9941-11cf-9756-00AA00C00908] @="yjrjvqkjlqqjnqkjvprqsjnjvkuknjpjtoun" // Multimedia Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\B1EFCCF0-6AC1-11cf-8ADB-00AA00C00905 = qqkjvqpqmqjjpqjjvpqqkqmqvkypoqjquoun [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\B1EFCCF0-6AC1-11cf-8ADB-00AA00C00905] @="qqkjvqpqmqjjpqjjvpqqkqmqvkypoqjquoun" // Chart Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\7C35CA30-D112-11cf-8E72-00A0C90F26F8 = whmhmhohmhiorhkouimhihihwiwinhlosmsl [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\7C35CA30-D112-11cf-8E72-00A0C90F26F8] @="whmhmhohmhiorhkouimhihihwiwinhlosmsl" // Windows Common Controls-2 6.0 license key HKEY_CLASSES_ROOT\Licenses\4F86BADF-9F77-11d1-B1B7-0000F8753F5D = iplpwpnippopupiivjrioppisjsjlpiiokuj [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\4F86BADF-9F77-11d1-B1B7-0000F8753F5D] @="iplpwpnippopupiivjrioppisjsjlpiiokuj" // Windows Common Controls 6.0 license key HKEY_CLASSES_ROOT\Licenses\ED4B87C4-9F76-11d1-8BF7-0000F8754DA1 = knlggnmntgggrninthpgmnngrhqhnnjnslsh [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\ED4B87C4-9F76-11d1-8BF7-0000F8754DA1] @="knlggnmntgggrninthpgmnngrhqhnnjnslsh" // Comm Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\4250E830-6AC2-11cf-8ADB-00AA00C00905 = kjljvjjjoquqmjjjvpqqkqmqykypoqjquoun [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\4250E830-6AC2-11cf-8ADB-00AA00C00905] @="kjljvjjjoquqmjjjvpqqkqmqykypoqjquoun" // DataGrid Control 6.0 (OLEDB) license key HKEY_CLASSES_ROOT\Licenses\CDE57A55-8B86-11D0-b3C6-00A0C90AEA82 = ekpkhddkjkekpdjkqemkfkldoeoefkfdjfqe [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\CDE57A55-8B86-11D0-b3C6-00A0C90AEA82] @="ekpkhddkjkekpdjkqemkfkldoeoefkfdjfqe" // DataList Control 6.0 (OLEDB) license key HKEY_CLASSES_ROOT\Licenses\A133F000-CCB0-11d0-A316-00AA00688B10 = cibbcimbpihbbbbbnhdbeidiocmcbbdbgdoc [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\A133F000-CCB0-11d0-A316-00AA00688B10] @="cibbcimbpihbbbbbnhdbeidiocmcbbdbgdoc" // DBWin license key HKEY_CLASSES_ROOT\Licenses\D015B071-D2ED-11d0-A31A-00AA00688B10 = gjdcfjpcmjicjcdcoihcechjlioiccechepd [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\D015B071-D2ED-11d0-A31A-00AA00688B10] @="gjdcfjpcmjicjcdcoihcechjlioiccechepd" // MSDBRPT license key HKEY_CLASSES_ROOT\Licenses\9DF1A470-BA8E-11D0-849C-00A0C90DC8A9 = cchcqjejhcgcqcfjpdfcdjkckiqikchcojpd [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\9DF1A470-BA8E-11D0-849C-00A0C90DC8A9] @="cchcqjejhcgcqcfjpdfcdjkckiqikchcojpd" // FlexGrid Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\72E67120-5959-11cf-91F6-C2863C385E30 = ibcbbbebqbdbciebmcobmbhifcmciibblgmf [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\72E67120-5959-11cf-91F6-C2863C385E30] @="ibcbbbebqbdbciebmcobmbhifcmciibblgmf " // MAPI Controls 6.0 license key HKEY_CLASSES_ROOT\Licenses\899B3E80-6AC6-11cf-8ADB-00AA00C00905 = wjsjjjlqmjpjrjjjvpqqkqmqukypoqjquoun [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\899B3E80-6AC6-11cf-8ADB-00AA00C00905] @="wjsjjjlqmjpjrjjjvpqqkqmqukypoqjquoun" // MSRDO 2.0 license key HKEY_CLASSES_ROOT\Licenses\B1692F60-23B0-11D0-8E95-00A0C90F26F8 = mjjjccncgjijrcfjpdfjfcejpdkdkcgjojpd [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\B1692F60-23B0-11D0-8E95-00A0C90F26F8] @="mjjjccncgjijrcfjpdfjfcejpdkdkcgjojpd" // RemoteData Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\43478d75-78e0-11cf-8e78-00a0d100038e = imshohohphlmnhimuinmphmmuiminhlmsmsl [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\43478d75-78e0-11cf-8e78-00a0d100038e] @="imshohohphlmnhimuinmphmmuiminhlmsmsl" // Windowless Controls 6.0 license key HKEY_CLASSES_ROOT\Licenses\80E80EF0-DBBE-11D0-BCE2-00A0C90DCA10 = qijimitpmpnpxplpvjnikpkpqoxjmpkpoivj [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\80E80EF0-DBBE-11D0-BCE2-00A0C90DCA10] @="qijimitpmpnpxplpvjnikpkpqoxjmpkpoivj" // PictureClip Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\6FB38640-6AC7-11cf-8ADB-00AA00C00905 = gdjkokgdldikhdddpjkkekgknesjikdkoioh [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\6FB38640-6AC7-11cf-8ADB-00AA00C00905] @="gdjkokgdldikhdddpjkkekgknesjikdkoioh" // Rich TextBox Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\DC4D7920-6AC8-11cf-8ADB-00AA00C00905 = iokouhloohrojhhhtnooiokomiwnmohosmsl [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\DC4D7920-6AC8-11cf-8ADB-00AA00C00905] @="iokouhloohrojhhhtnooiokomiwnmohosmsl" // Sheridan Tab Control license key HKEY_CLASSES_ROOT\Licenses\190B7910-992A-11cf-8AFA-00AA00C00905 = gclclcejjcmjdcccoikjlcecoioijjcjnhng [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\190B7910-992A-11cf-8AFA-00AA00C00905] @="gclclcejjcmjdcccoikjlcecoioijjcjnhng" // SysInfo Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\E32E2733-1BC5-11d0-B8C3-00A0C90DCA10 = kmhfimlflmmfpffmsgfmhmimngtghmoflhsg [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\E32E2733-1BC5-11d0-B8C3-00A0C90DCA10] @="kmhfimlflmmfpffmsgfmhmimngtghmoflhsg" // Winsock Control 6.0 license key HKEY_CLASSES_ROOT\Licenses\2c49f800-c2dd-11cf-9ad6-0080c7e7b78d = mlrljgrlhltlngjlthrligklpkrhllglqlrk [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\2c49f800-c2dd-11cf-9ad6-0080c7e7b78d] @="mlrljgrlhltlngjlthrligklpkrhllglqlrk" Windows Registry Editor Version 5.00 [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses] @="Licensing: Copying the keys may be a violation of established copyrights." [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\0BF740FC-3012-11D3-A263-00A0CC24A88F] @="klolslkleegejeeerfgleefetfsflehejesf" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\1F3D5522-3F42-11d1-B2FA-00A0C908FB55] @="gcfjdjecpchcncdjpdejijgcrdoijjfcieod" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\2A5D63FD-BF5A-497d-BFE1-F53CEFC37779] @="AGDHTTTKRNGHAPDFJHSB" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\73A4C9C1-D68D-11d0-98BF-00A0C90DC8D9] [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\73A4C9C1-D68D-11d0-98BF-00A0C90DC8D9\10.0] [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\73A4C9C1-D68D-11d0-98BF-00A0C90DC8D9\10.0\Retail] @="sbbcdcprktpjtapmmfdacmupasbhscddncgp" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\73A4C9C1-D68D-11d0-98BF-00A0C90DC8D9\11.0] [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\73A4C9C1-D68D-11d0-98BF-00A0C90DC8D9\11.0\Retail] @="sbbcdcprktpjtapmmfdacmupasbhscddncgp" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\74872841-703A-11d1-A3AF-00A0C90F26FA] @="klglsejeilmereglrfkleeheqkpkelgejgqf" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\B08D82D0-3496-44d5-921B-E74D1F013F8C] @="kvnfkwenasdvnxzvlkjsafnxzvlkcjasfdlwepasd" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\C4B8C1BC-A36C-4723-AF48-F362BFAB9DF5] @="eiwzkduejthandlptotuwejwzlodptriweqyahznx" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Licenses\CEDD4F80-B43C-11cf-837C-00AA00573EDE] @="#%gxwaezucfyqpwjgqbcmtsncuhwsnyhiohwxz"
